SLAB FORMWORK
CEILING SUPPORTS
Props / construction stamps are the basic elements of the ceiling system, they have a large range of protrusion height of the prop. We distinguish painted ceiling supports, covered with paint as well as hot-dip galvanized, thanks to which the support is highly resistant to weather conditions.
WHAT MAKES OUR PROPS STAND OUT:
the highest quality of workmanship – durable elements made of high-quality materials,
high load capacity in accordance with the PN-EN 1065:2001 standard
the possibility of using selected supports in various systems and in any configurations.

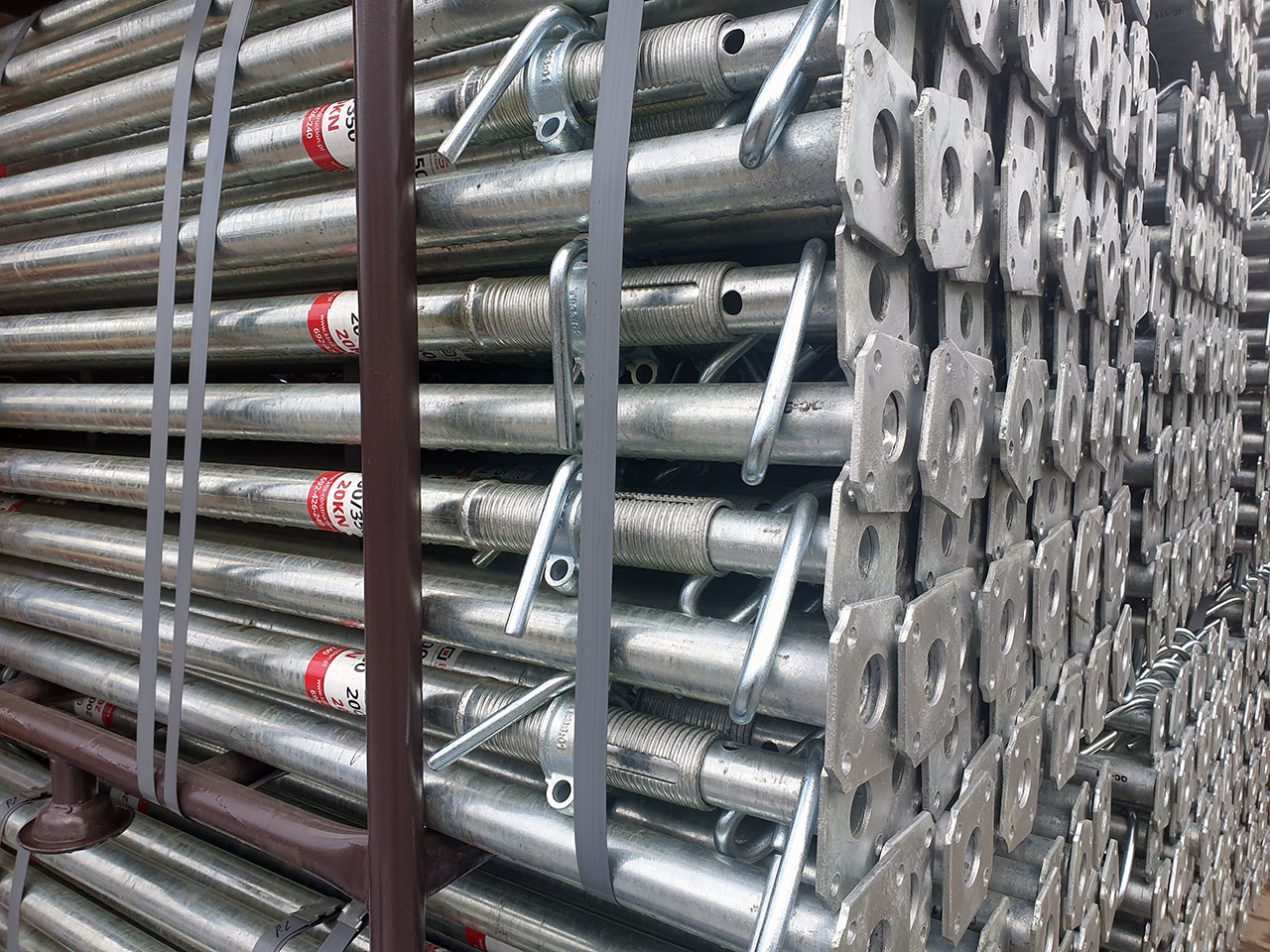

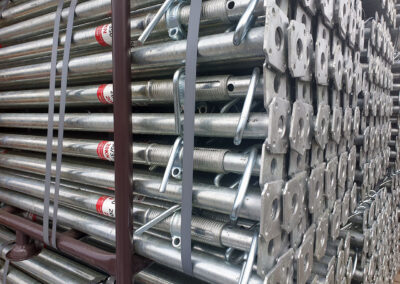

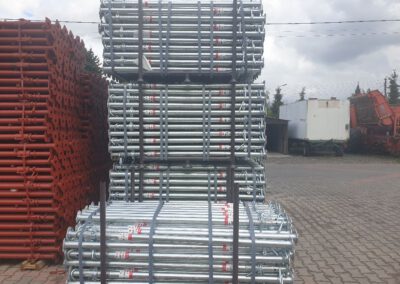

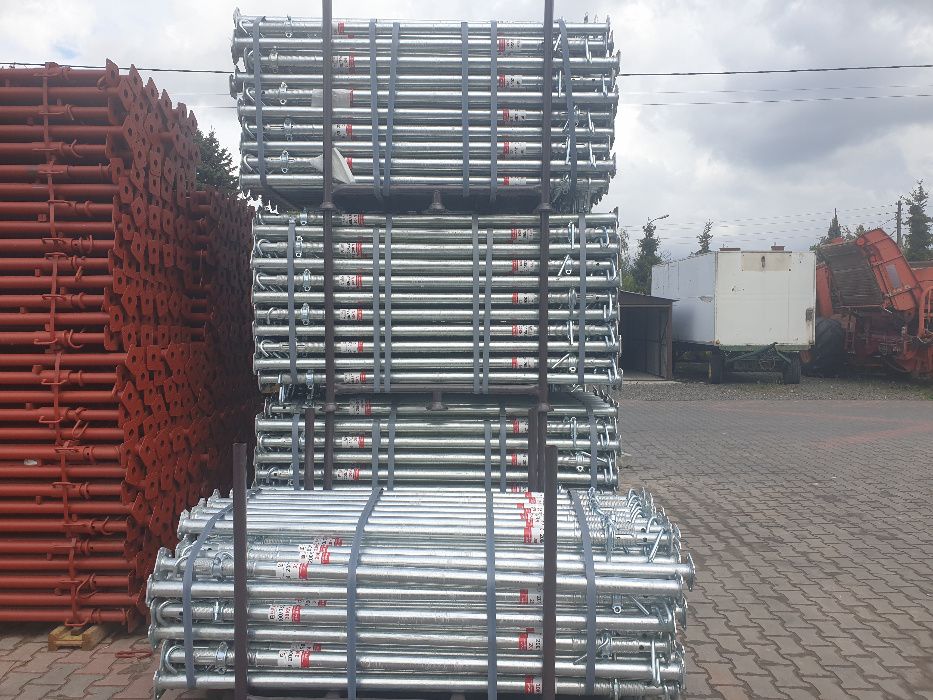

KBS TOP SUPPORT
KBS TOP props with a load capacity of 20 kN. Used for thick ceilings – over 19 cm. The supports are hot-dip galvanized, with a smooth height adjustment system and have an external thread (self-cleaning), thanks to which they can be easily adjusted to the desired height.
The product has a very high safety factor, confirmed by the Sigma certificate.
EASY-ROWING ADJUSTABLE NUT
thanks to the special thread geometry
FAST, ENERGY EFFICIENT WORK
thanks to the low weight
SECURITY
continuous high load capacity of at least 20 or 30 kN according to EN 1065-C/D or C/E class, as well as anti-pinch protection and anti-drop trigger
PROP KBS TOP 20
PROP KBS TOP 20
Ceiling prop
| NAME | DIMENSION | WEIGHT |
|---|---|---|
| PROP KBS TOP 20-300 | 171,5 - 300,0 cm | 16,80 kg |
| PROP KBS TOP 20-350 | 195,0 - 350,0 cm | 18,80 kg |
| PROP KBS TOP 20-400 | 221,0 - 400,0 cm | 22,50 kg |
| PROP KBS TOP 20-550 | 296,0 - 550,0 cm | 37,50 kg |

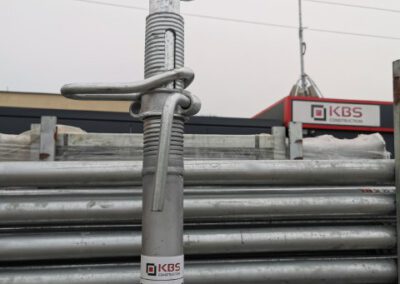

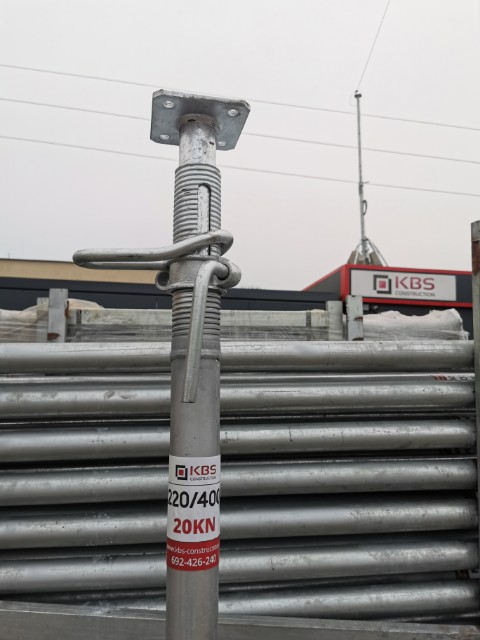

PROP KBS EKO
PROP KBS EKO 20
Ceiling prop

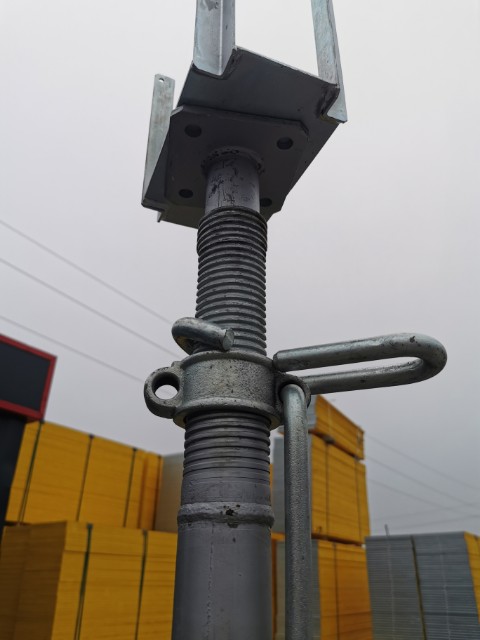

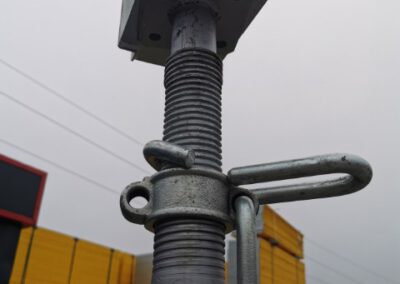

The supports consist of two tubes: outer and inner. They feature an external thread for fine adjustment, an adjusting nut and a locking pin, and flat square top and base feet for use in conjunction with system formwork or floor girder heads.
The support can be directed with the internal pipe directed upwards or downwards. The support has an external thread, without a self-cleaning mechanism, allowing for smooth adjustment of the support’s height in the entire range of its operation.
| NAME | DIMENSION | WEIGHT |
|---|---|---|
| PROP KBS EKO 20-300 | 171,5 - 300,0 cm | 16,80 kg |
| PROP KBS EKO 20-350 | 195,0 - 350,0 cm | 18,80 kg |
| PROP KBS EKO 20-400 | 221,0 - 400,0 cm | 22,50 kg |
| PROP KBS EKO 20-550 | 296,0 - 550,0 cm | 37,50 kg |
PAINTED PROP KBS 10 KN
PAINTED PROP KBS 10 KN
Ceiling prop
Medium-light steel adjustable painted props KBS is a compression element used as a temporary vertical support in frame slab formwork. Used in conjunction with system formwork or ceiling cross heads.
| NAME | DIMENSION | WEIGHT |
|---|---|---|
| PAINTED PROP 300 (1,60-3,00m) | 160 - 300 cm | 8,40 kg |
| PAINTED PROP 360 (2,00-3,60m) | 200 - 360 cm | 9,80 kg |
| PAINTED PROP 400 (2,20-4,00m) | 220 - 400 cm | 11,00 kg |
| PAINTED PROP 500 (3,00-5,00m) | 300 - 500 cm | 14,00 kg |
Galvanized Props KBS 10 KN
Galvanized Props KBS 10 KN
Ceiling prop
The KBS medium-light, galvanized steel adjustable prop is a compression element used as a temporary vertical support in frame slab formwork. Used in conjunction with system formwork or ceiling girder heads.
| NAME | DIMENSION | WEIGHT |
|---|---|---|
| GALVANIZED PROP 300 (1,60-3,00m) | 160 - 300 cm | 8,40 kg |
| GALVANIZED PROP 360 (2,00-3,60m) | 200 - 360 cm | 9,80 kg |
| GALVANIZED PROP 400 (2,20-4,00m) | 220 - 400 cm | 11,00 kg |
| GALVANIZED PROP 500 (3,00-5,00m) | 300 - 500 cm | 14,00 kg |
